FRP Cat Ladder
MinLadder
MinLadder and ladder cages mounted on the sides of tanks and buildings are very common in wide range of industries.
MinLadders are in a standard 19″ rung width and spacing 12″. Variety of ladder lengths can be produced as practical. Custom colors and custom designed ladders and access cages can be fabricated upon request. Ladders can be shipped pre-assembled for installation at site
MinLadders are in a standard 19″ rung width and spacing 12″. Variety of ladder lengths can be produced as practical. Custom colors and custom designed ladders and access cages can be fabricated upon request. Ladders can be shipped pre-assembled for installation at site

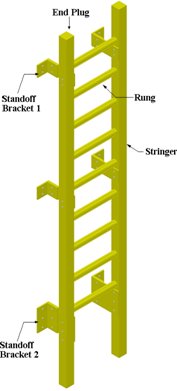

| Ladder and Cage Systems | |||
| Specification | |||
 |
Stringer | 2” x 1/4” SHS |
|
| Rung | 1-1/4” Flute Tube | ||
| Intermediate Loop | 2” x 1/4” Strip | ||
| Top and Bottom Loop | 3” x 1/4” Strip | ||
| Strap | 2” x 3/16” Strip | ||
| Standoff Bracket 1 | 4” x 3/8”(T) x 4”(L) Angle 4” x 10” x 3/8” (T) Plate | ||
| Standoff Bracket 2 | 4” x 3/8”(T) x 8”(L) Angle 8” x 10” x 3/8” (T) Plate | ||
| Base Angle | 3” x 1/2” x 2” Angle | ||
| End Plug | Molded End Cap | ||
