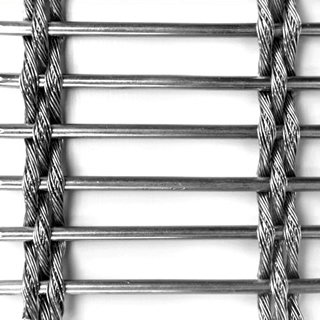

TCBL-3040-1100145 |
open area: |
65% |
| warp cable: |
3x3mm |
| weft rod: |
4mm |
| warp pitch: |
110mm |
| weft pitch: |
14.5mm |
| thicknes: |
10mm |
| materials: |
stainless steel |
| application: |
facade |
|
|
|

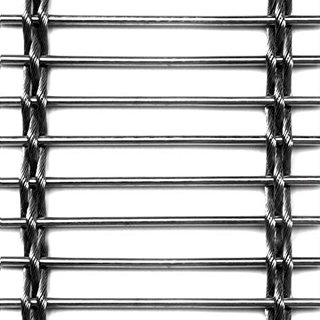

TCBL-2025-800100 |
open area: |
68% |
| warp cable: |
3x2mm |
| weft rod: |
2.5mm |
| warp pitch: |
80mm |
| weft pitch: |
10mm |
| thicknes: |
6.5mm |
| materials: |
stainless steel |
| application: |
facade, ceiling, partition |
|
|
|

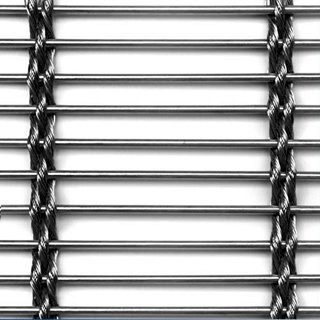

TCBL-2530-800100 |
open area: |
62% |
| warp cable: |
3×2.5mm |
| weft rod: |
3mm |
| warp pitch: |
80mm |
| weft pitch: |
10mm |
| thicknes: |
8mm |
| materials: |
stainless steel |
| application: |
facade, ceiling, partition |
|
|
|

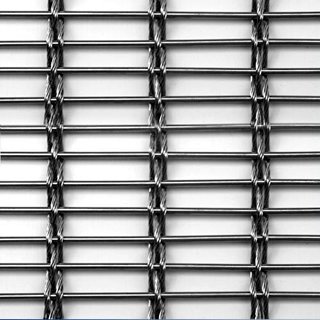

TCBL-1420-30080  |
open area: |
63% |
| warp cable: |
3×1.4mm |
| weft rod: |
20mm |
| warp pitch: |
30mm |
| weft pitch: |
8mm |
| thicknes: |
5mm |
| materials: |
stainless steel |
| application: |
facade, ceiling, partition |
|
|
|

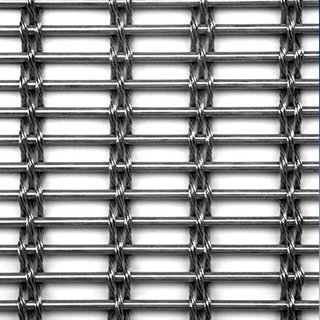

TCBL-1425-25080 |
open area: |
56% |
| warp cable: |
3×1.4mm |
| weft rod: |
2.5mm |
| warp pitch: |
25mm |
| weft pitch: |
8mm |
| thicknes: |
8mm |
| materials: |
stainless steel |
| application: |
facade, ceiling |
|
|
|
